WINDER3

WINDER3 slitter is the most advanced slitter in compact segment.

AVANCER2

Maximum slitting efficiency, advanced automatic functions.

LANGER4

Multipurpose rewinder designed for Work Flow, 100% inspection,
reinspection of pharma labels [200% inspection].

CATER-A

Core cutting has never been so easy and effective.

FOIL & LABEL REWINDERS

We design and build doctor rewinders for foil, as well as inspection rewinders for monofoil, wrap around labels, shrinksleeves and all types of packaging composite materials. The inspection rewinder can be equipped with an inspection camera or Work Flow. In addition, we produce rewinding machines for die-cutting of blank and pre-printed labels.

  • LANGER4

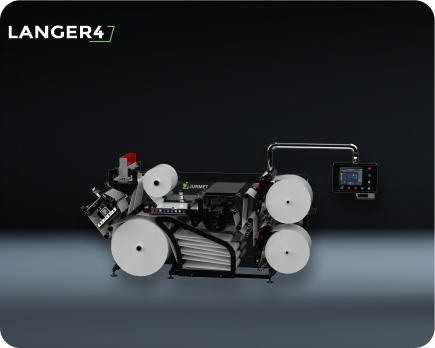

    LANGER4

    Technical data

    Width of material: 450/510/600mm (17.7"/20.1"/23.6")
    Unwind diameter: 800/1016mm (31,5"/40")
    Rewind diameter: 400/600mm (15.7"/23.6")

    Available equipment
    • Compact, horizontal construction
    • Fully automatic web tension control
    • Supported unwind via a motor
  • ROTER

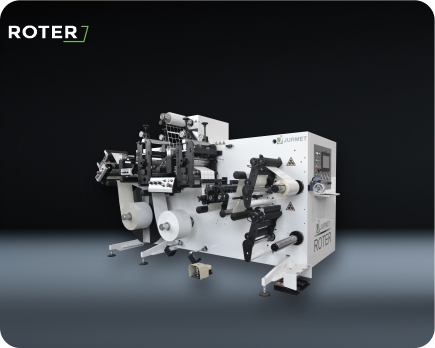

    ROTER

    Technical data

    Width of material: 270/380/450mm (10.6"/15"/17.7")
    Unwind diameter: 800mm (31.5")
    Rewind diameter: 400/500mm (15.7"/19.7")

    Available equipment
    • 1 or 2 rotary die cutting stations, a possibility to choose by the supplier
    • Semi-turret rewinding station
    • Fully automatic web tension control
  • LANGER-d

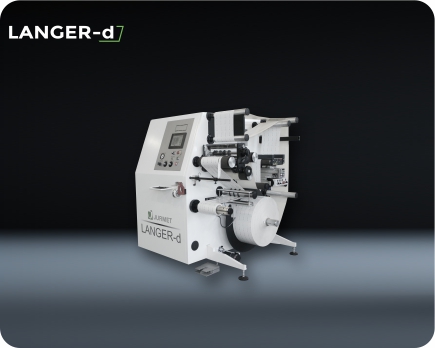

    LANGER-d

    Technical data

    Web width 380/450mm (15"/17.7")
    Unwind diameter 800mm (31.5")
    Rewind diameter 400/500mm (15.7"/19.7")

    Available equipment
    • Compact, horizontal construction
    • Fully automatic web tension control
    • Supported unwind via a motor

  • ROTER-S

    ROTER-S

    Technical data

    Width of material: 380/450mm (15"/17.7")
    Unwind diameter: 800mm (31.5")
    Rewind diameter: 400/500mm (15.7/19.7")

    Available equipment
    • Die cutting with semi-rotation
    • Semi-turret rewinding station
    • Additional unwind and rewind for foil laminating
  • REWER

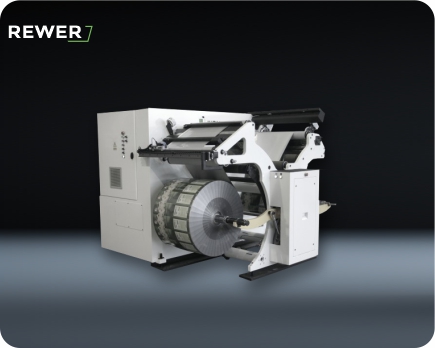

    REWER

    Technical data

    Web width 400/600mm (15.7"/23.6")
    Unwind diameter 600/800mm (23.6"/31.5")
    Rewind diameter 600/800mm (23.6"/31.5")

    Available equipment
    • Compact construction
    • Feed-braking motor
    • Rewind in both directions
  • REWER2

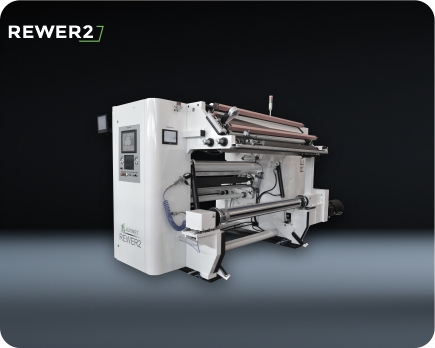

    REWER2

    Technical data

    Web width 800/1000/1300/1600mm (31.5"/39.4"/51.2"/63")
    Unwind diameter 1000/1200mm (39.4"/47.2")
    Rewind diameter 1000/1200mm (39.4"/47.2")

    Available equipment
    • Compact construction
    • Feed-braking motor
    • Rewind in both directions
