WINDER2C

Innovative slitter WINDER2C for controlling purposes was created by constructors of JURMET’s R+D team.

  • 1000/1300mm
    Web width
  • 1000mm
    Unwind roll diameter
  • 610/800mm
    Max. rewind diameter
  • 650m/min.
    Speed

WINDER2C

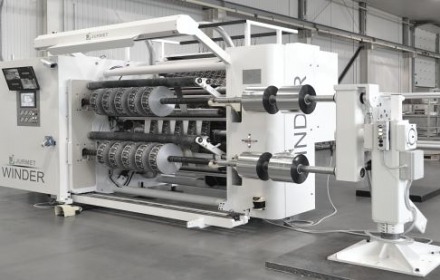

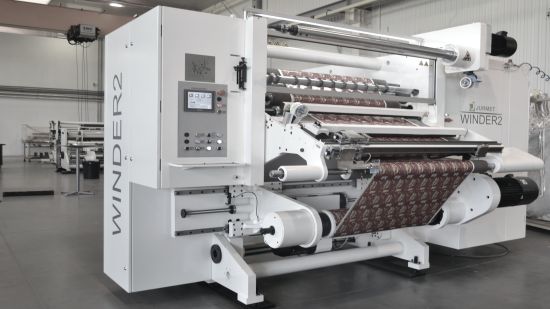

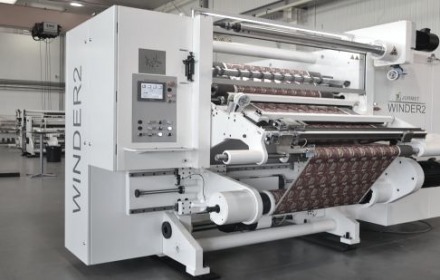

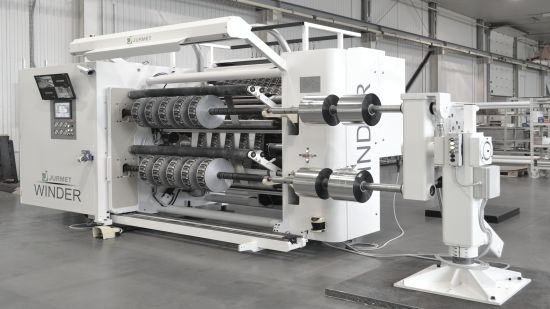

WINDER2C - slitter with Work Flow

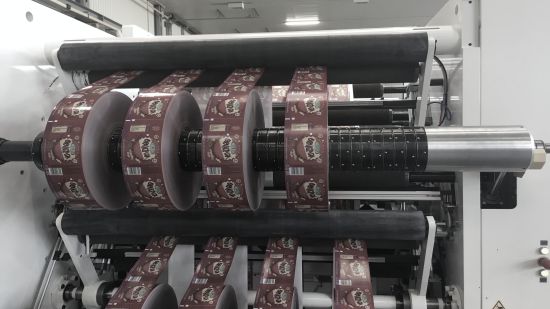

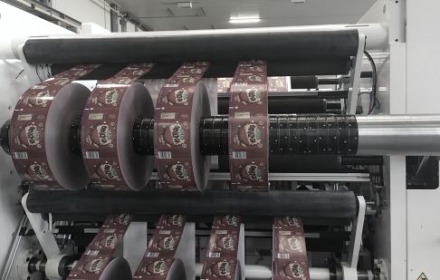

Innovative slitter for controlling WINDER2C is a patent protected solution developed by JURMET's R&D department and dedicated to flexographic printing houses. It has been designed especially for checking the print quality and Work Flow. It has to be emphasized that the errors found in earlier packaging production processes have to be removed on the slitter rewinder. In order to achieve this aim the slitter is equipped with a special inspection table at the unwind enabling cutting out defective parts of material and an additional rewinder station for efficient waste rewinding. WINDER2C has been adapted to work in Work Flow system based on the reports generated on the flexo press.

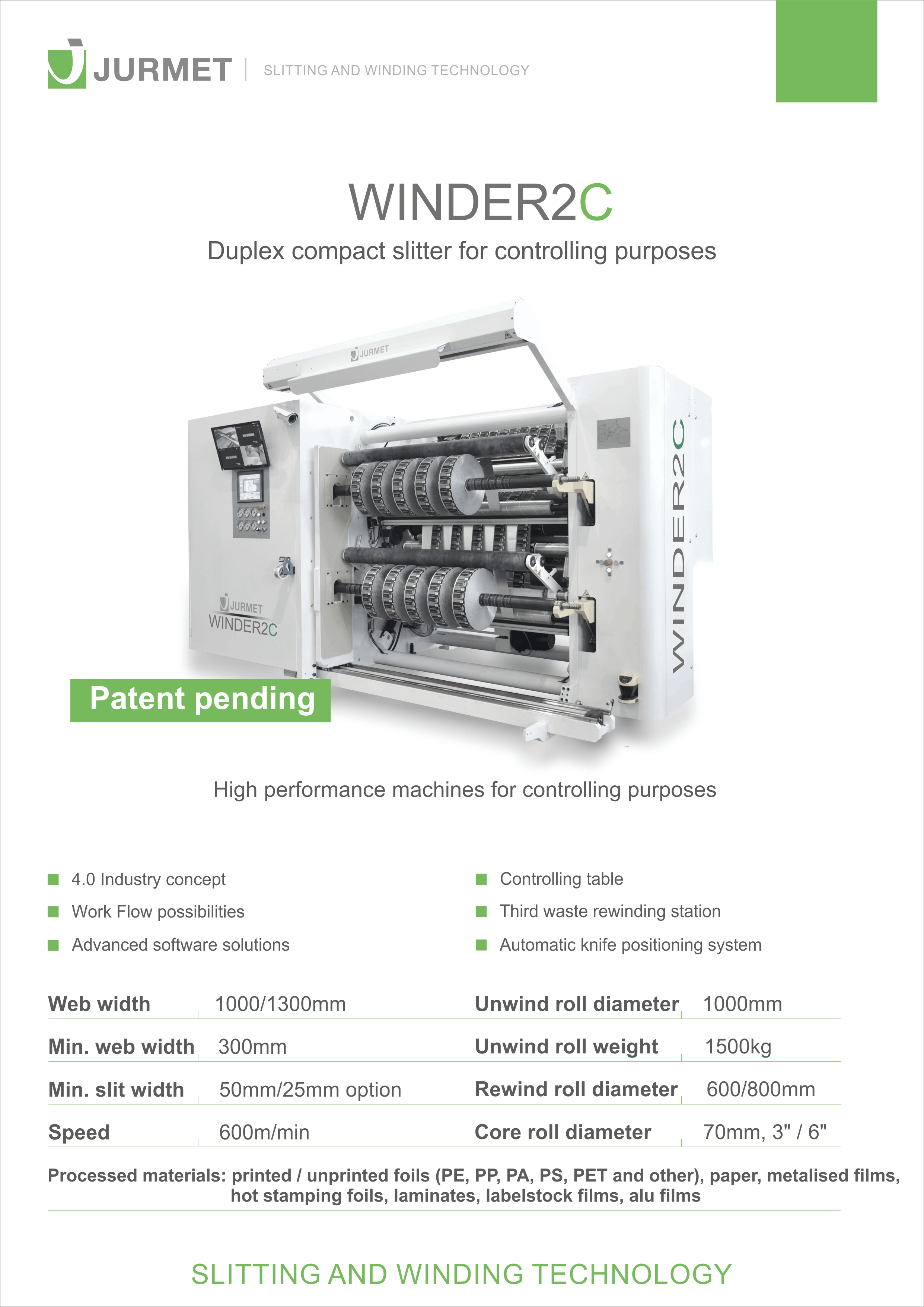

TECHNICAL DATA

Width of material
1000/1300mm
Unwind diameter
1000mm
Rewind diameter
610/800mm
Max. mechanical speed
650m/min.
Weight of parent roll
1500 kg
Min. slitting width
15mm (50mm as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminates, shrink film, label stock film, paper ,HSF film, aluminium, para transmission film
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials
