MASTER

MASTER slitter ensures complete control of the cutting process. Information on cutting different types of materials is stored and automatically recalled for repetitive jobs.

  • 1000/2200mm
    Web width
  • 1300/1500mm
    Unwind roll diameter
  • 610/800/1000mm
    Max. rewind diameter
  • 700m/min.
    Speed

MASTER

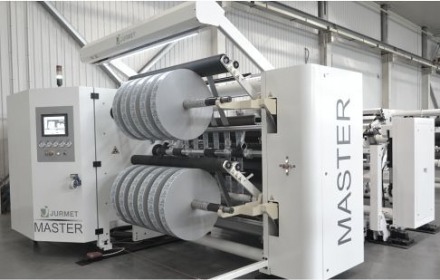

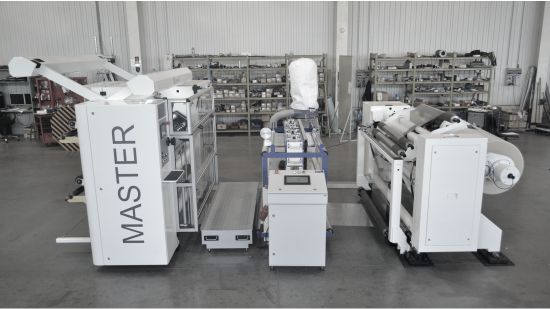

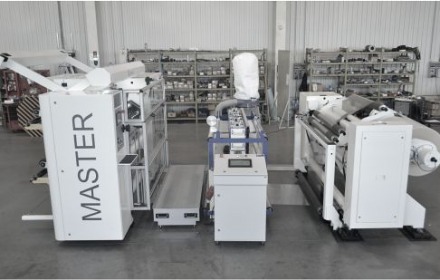

MASTER - duplex slitter with separate unwinder

MASTER slitter ensures a total control of slitting process. Data concerning slitting of various materials is stored and automatically recalled in case of repeated jobs. The software of the slitter is designed so that it is possible to set various tensions easily on different sections of the slitter. In addition, the system identifies possible problems, advices about methods of solving problems, informs about maintained jobs and stores information concerning job of the slitter. Lower run of material allows placing additional modules such as a laser to cut between unwind and rewind. The customer focused on innovations can optimally use advantages of modular construction.

TECHNICAL DATA

Width of material
1000/1300/1600/1850/2000/2200mm
Unwind diameter
1300/1500mm
Rewind diameter
610/800/1000mm
Max. mechanical speed
700m/min.
Weight of parent roll
2500 kg
Min. slitting width
15mm (50mm as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foils (PE,PP,PA,PS,PET and other), paper, metalised films, laminates, labelstock films, alu films, non-woven.
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials

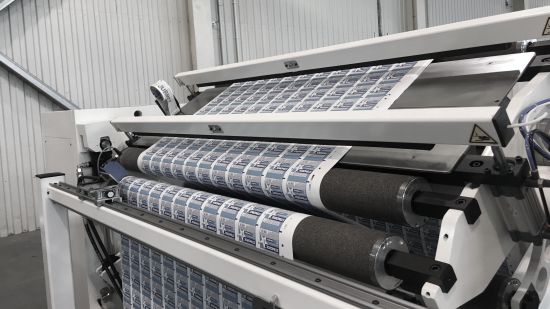

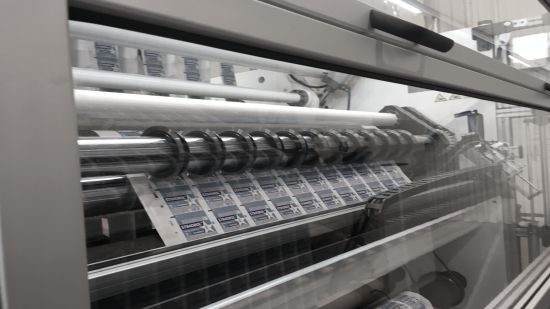

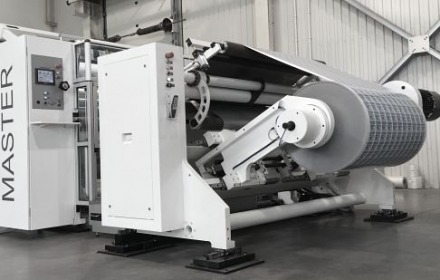

Gallery
