REWER2

High quality of supplied rolls is the most important for our customers. Thanks to REWER2 you will be able to avoid unnecessary claims and roll returns.

  • 800-1600mm (31.5"-63")
    Web width
  • 1000/1200mm (39.4"/47.2")
    Unwind roll diameter
  • 1000/1200mm (39.4"/47.2")
    Max. rewind diameter
  • 600m/min. (1969 ft/min.)
    Speed

REWER2

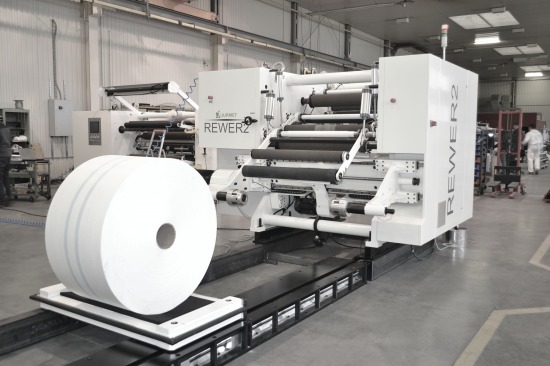

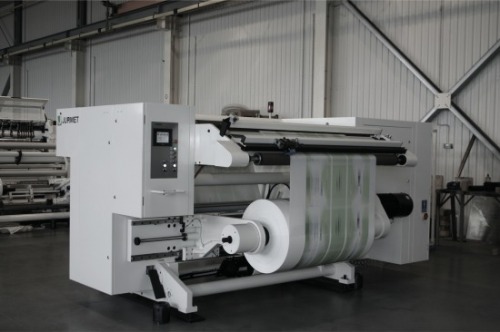

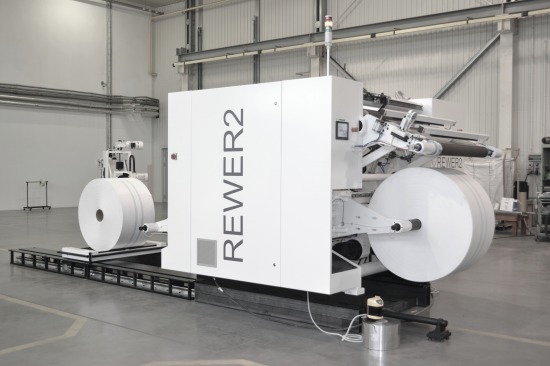

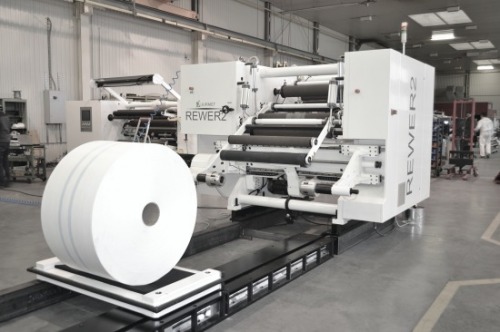

REWER2 - large doctor rewinder

High quality of supplied rolls is the most important for our customers. To achieve this aim JURMET designed an inspection rewinder for flexible materials. Thanks to REWER2 you will be able to avoid unnecessary claims and roll returns. Additional rewinding performed on this machine is aimed to correct quality of material web, control print quality, extract of faulty material, and if required, to cut off edges. REWER2 rewinder allows rewinding material in both directions, which allows for additional print control.

TECHNICAL DATA

Width of material
800/1000/1300/1600mm
Unwind diameter
1000/1200mm (39.4"/47.2")
Rewind diameter
1000/1200mm (39.4"/47.2")
Max. mechanical speed
600m/min. (1969 ft/min.)
ID core
70mm, 3", 6"
Processed materials:
packaging for food industry, flexo printing houses, health care materials and pharma materials
