AVANCER

AVANCER is an automatic double turret slitter with four rewinding shafts and separate unwind station designed for increased productivity and low production downtime.

  • 1000/1800mm
    Web width
  • 1000mm
    Unwind roll diameter
  • 600mm
    Max. rewind diameter
  • 650m/min.
    Speed

AVANCER

AVANCER - duplex compact turret slitter

AVANCER is an automatic double turret slitter with four rewinding shafts designed for increased productivity and low production downtime. The slitter is built according to traditional JURMET solid and robust construction standards. Numerous proven solutions applied in AVANCER slitter are designed to ease the operation features and maintain the high degree of flexibility.

TECHNICAL DATA

Width of material
1000/1300/1600/1800mm
Unwind diameter
1000mm
Rewind diameter
600mm
Max. mechanical speed
650m/min.
Weight of parent roll
1500 kg
Min. slitting width
15mm (50mm as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminates, shrink film, label stock film, paper ,HSF film, aluminium, para transmission film
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials

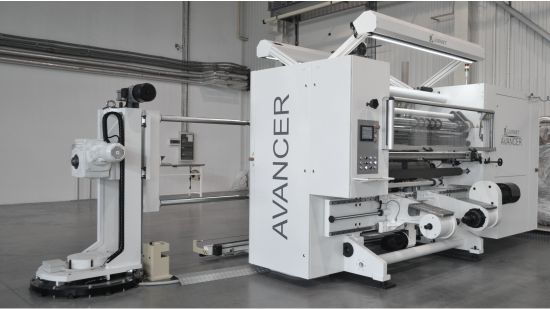

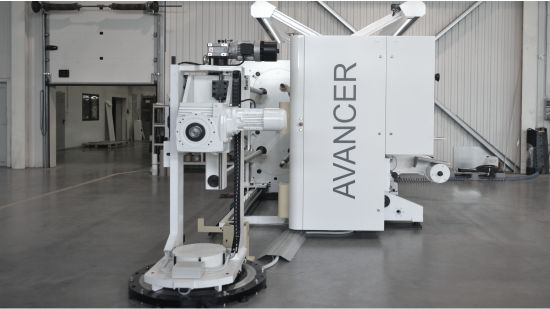

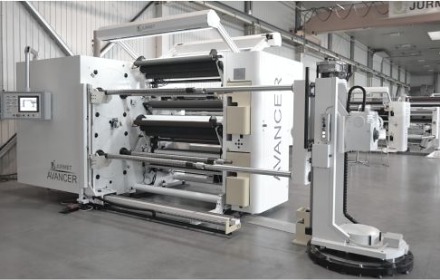

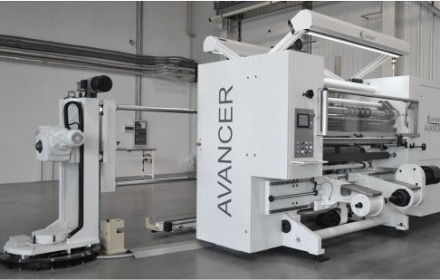

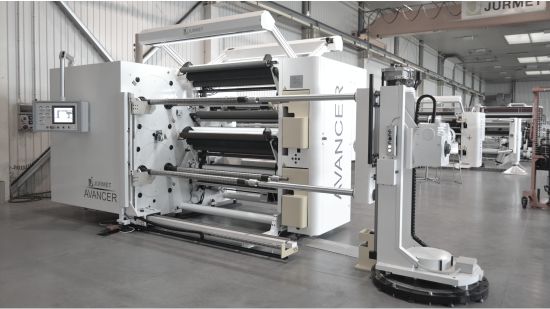

Gallery
