WINDER2

WINDER2 slitter is the most practical slitter in the compact segment. Combination of small dimensions and advanced options makes the slitter ideal solution for flexo houses.

  • 1000-1850mm (39.4"-72.8")
    Web width
  • 1000mm (39.4")
    Unwind roll diameter
  • 610/800mm (24"/31.5")
    Max. rewind diameter
  • 600m/min. (1969 ft/min.)
    Speed

WINDER2

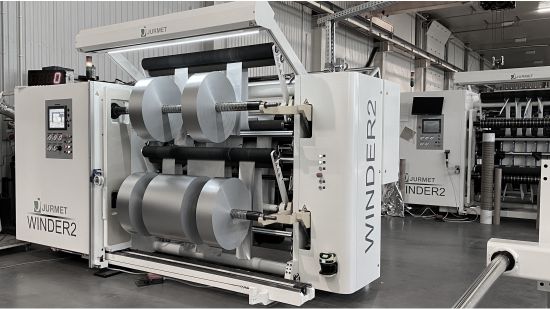

WINDER2 - duplex compact slitter with integrated unwind station

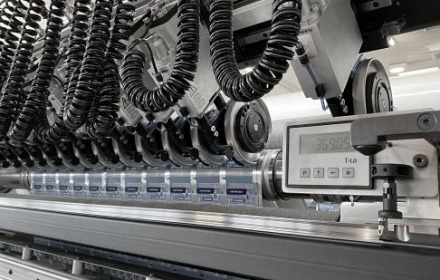

WINDER2 slitter is the result of continuous innovation process which is the answer to the growing demand for optimal slitting process.The technologically advanced control systems and ergonomic design make WINDER2 the ideal solution for high performance slitting of various flexible materials on a space saving slitter. The state of the art automatic devices such as the automatic knife positioning system, laser core positioning system, sophisticated control via touch screen panel allow slitting tension sensitive materials as well as thick self-adhesive materials on one slitter.

TECHNICAL DATA

Width of material
1000/1300/1600/1850mm (39.4"/51.2"/63"/72.8")
Unwind diameter
1000mm (39.4")
Rewind diameter
610/800mm (24"/31.5")
Max. mechanical speed
600m/min. (1969 ft/min.)
Weight of parent roll
1500 kg (3307 lbs)
Min. slitting width
25mm/1" (50mm/2" as standard)
Core ID
1", 50mm, 70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminates, shrink film, label stock film, paper ,HSF film, aluminium, para transmission film
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials

Gallery
